Melt-Blown Spun Polypropylene Sediment Filters

SP-P Series

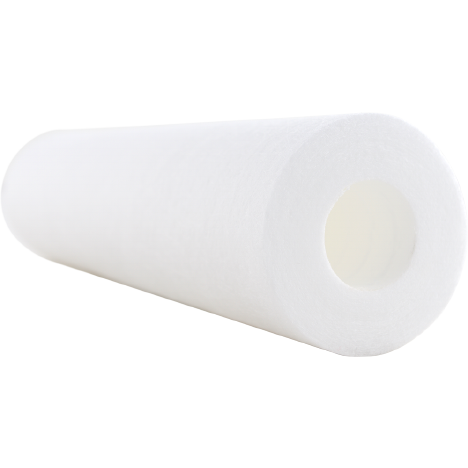

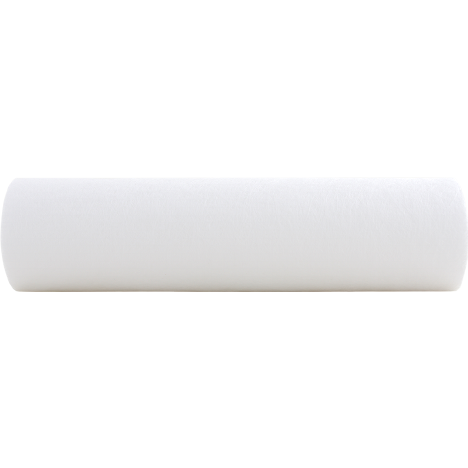

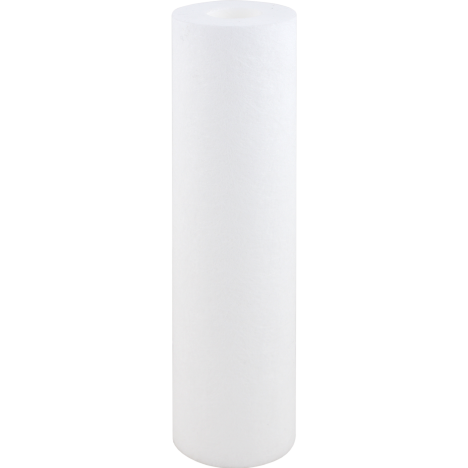

The SpiroPure SP-P series of sediment filters are composed of 100% polypropylene. The spun fibers form a natural gradient density from the outer to inner surface of the cartridge. The spun-bonded polypropylene cartridge makes it the perfect sediment filter for chemical resistance, purity, and resists bacterial attack.
  • Reduces fine sediment particles from residential, commercial, and municipal drinking water

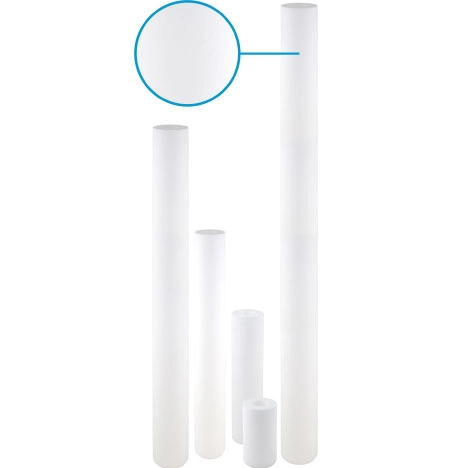

  • Available in nominal sizes of: 5x2.5, 10x2.5, 20x2.5, 30x2.5, 40x2.5, and 50x2.5
  • Available nominal filtration ratings of: 1, 3, 5, 10, 25, 50, and 75 microns
  • Made with melt-blown spun polypropylene filter media
  • Temperature rating of 40°F to 140°F (4.4°C to 60°C)
Filter Details Chart
Model Number Nominal Micron Rating Pressure Drop Temperature Rating Case Quantity Case Dimensions Case Weight

2.5" x 5"

SP-P1-478
SP-P5-478
SP-P10-478

1 micron
5 micron
50 micron

0.3 psi @ 2 gpm (<0.02 bar @ 7.6 Lpm)

40°F - 140°F (4.4°C - 60°C)

24

15” x 10 1/2” x 6”

4 lbs

2.5" x 10"

SP-P1

SP-P5
SP-P10
SP-P25
SP-P50

1 micron

5 micron
10 micron
25 micron
50 micron

0.6 psi @ 5 gpm (<0.04 bar @ 18.9 Lpm)

0.2 psi @ 5 gpm (<0.01 bar @ 18.9 Lpm)

40°F - 140°F (4.4°C - 60°C)

24

15 1/2” x 10 3/4” x 10 1/2”

7 lbs

2.5" x 20"

SP-P1-20
SP-P5-20
SP-P10-20

SP-P25-20
SP-P50-20

1 micron
5 micron
10 micron

25 micron
50 micron

0.6 psi @ 10 gpm (<0.04 bar @ 37.9 Lpm)

0.2 psi @ 10 gpm (<0.01 bar @ 37.9 Lpm)

40°F - 140°F (4.4°C - 60°C)

20

20 1/4” x 14” x 11”

11 lbs

2.5" x 30"

SP-P1-30
SP-P3-30

SP-P5-30
SP-P10-30
SP-P25-30
SP-P50-30
SP-P75-30

1 micron
3 micron

5 micron
10 micron
25 micron
50 micron
75 micron

0.5 psi @ 10 gpm (<0.03 bar @ 37.9 Lpm)

0.2 psi @ 10 gpm (<0.01 bar @ 37.9 Lpm)

40°F - 140°F (4.4°C - 60°C)

20

31” x 13” x 10 1/2”

17 lbs

2.5" x 40"

SP-P1-40
SP-P5-40
SP-P10-40
SP-P25-40
SP-P50-40
SP-P75-40

1 micron
5 micron
10 micron
25 micron
50 micron
75 micron

0.2 psi @ 10 gpm (<0.01 bar @ 37.9 Lpm)

40°F - 140°F (4.4°C - 60°C)

20

41” x 13” x 10”

22 lbs

2.5" x 50"

SP-P5-50

5 micron

0.2 psi @ 10 gpm (<0.01 bar @ 37.9 Lpm)

40°F - 140°F (4.4°C - 60°C)

20

51” x 13 1/2” 10”

28 lbs
Cross Reference Chart
Size Rating SpiroPure Hydronix Pentek Culligan
2.5" x 5"

1 micron
5 micron
10 micron

SP-P1-478
SP-P5-478
SP-P10-478

SDC-25-0501
SDC-25-0505
SDC-25-0510

P5-478 / 155030-43

2.5" x 10"

1 micron
5 micron
10 micron
20 micron
25 micron
50 micron

SP-P1
SP-P5
SP-P10

SP-P25
SP-P50

SDC-25-1001
SDC-25-1005
SDC-25-1010
SDC-25-1020

SDC-25-1050

P1 / 155225-43
P5 / 155014-43

P25 / 155015-43

Culligan P5
2.5" x 20"

1 micron
5 micron
10 micron
20 micron
25 micron
50 micron

SP-P1-20
SP-P5-20
SP-P10-20

SP-P25-20
SP-P50-20

SDC-25-2001
SDC-25-2005
SDC-25-2010
SDC-25-2020

SDC-25-2050

P1-20 / 155304-43
P5-20 / 155016-43

P25-20 / 155226-43

2.5" x 30"

1 micron
3 micron
5 micron
10 micron
25 micron
50 micron
75 micron

SP-P1-30
SP-P3-30
SP-P5-30
SP-P10-30
SP-P25-30
SP-P50-30
SP-P75-30

SDC-25-3001

SDC-25-3005
SDC-25-3010
SDC-25-3025
SDC-25-3050
SDC-25-3075

PP1-30 / 155227-43

P5-30 / 155228-43

P25-30 / 155224-43

2.5" x 40"

1 micron
5 micron
10 micron
25 micron
50 micron
75 micron

SP-P1-40
SP-P5-40
SP-P10-40
SP-P25-40
SP-P50-40
SP-P75-40

SDC-25-4001
SDC-25-4005
SDC-25-4010
SDC-25-4025
SDC-25-4050
SDC-25-4075

P5-40 / 155422-43

2.5" x 50"

5 micron

SP-P5-50

SDC-25-5005
